What is the Difference Between Weft and Warp Fabrics?

Related stories

Learn About Opening an Automobile Repair Shop in India

Starting a car repair shop is quite a good...

Unlocking the Power: Embracing the Benefits of Tax-Free Investing

  Unlocking the Power: Embracing the Benefits of Tax-Free Investing For...

Income Splitting in Canada for 2023

  Income Splitting in Canada for 2023 The federal government’s expanded...

Can I Deduct Home Office Expenses on my Tax Return 2023?

Can I Deduct Home Office Expenses on my Tax...

Canadian Tax – Personal Tax Deadline 2022

  Canadian Tax – Personal Tax Deadline 2022 Resources and Tools...

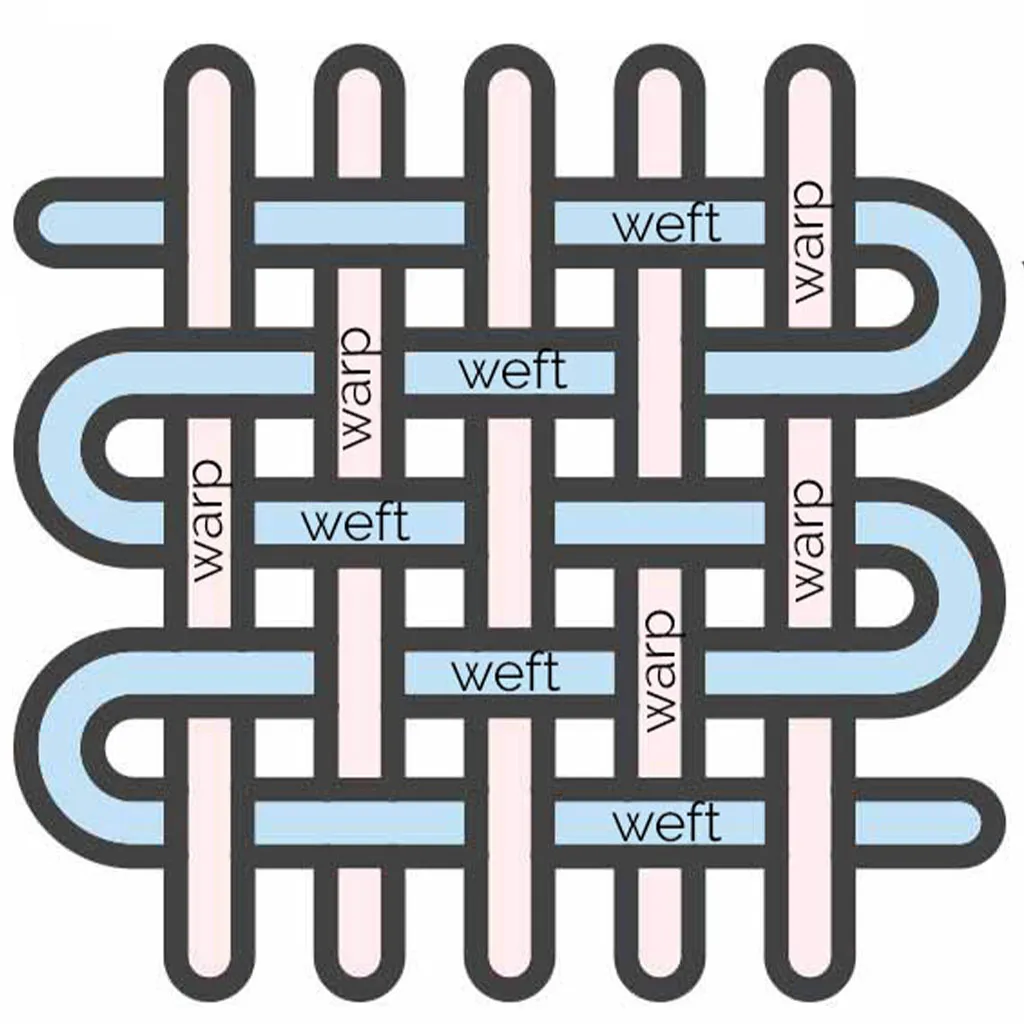

Warp and Weft are the two basic pieces used in weaving fabric. A single thread of weft crossing the warp is called a pick. Warp are the set of yearns placed on the loom before weaving. Whereas the weft doesn’t need to be stretched on the loom.

Every new day brings up the latest fashion trend, so one can see how many fashion trends and changes are sweeping the globe today. As fashion evolves with the times, old civilisations are making a comeback.

Two series of threads make up woven fabric, a type of textile created through weaving. Instead of knitting the strands together, it is spun by weaving them together. Typically, the strands are interwoven at right angles.

These threads are called warps and wefts based on the direction in which they are wound. In this article, you can read more about the relevance of each component for a woven fabric and see the difference between weft and warp.

Did you know?

Warp and Weft can be distinguished based on their weaving techniques, types of knits, quality of fabrics, and direction of yarns.

What is Warp Fabric?

The term “warp” refers to the yarn that runs parallel to the fabric’s edge. The strands that run lengthwise or longitudinally through the cloth are called warps and are kept immobile.

The warp yarns are first drawn from the warper beam during fabric production and then stretched. Later, they are passed through with the weft yarns drawn during the weaving process.

Through the warping process, the strings create a parallel sheet of yarn looped onto the beam. The fundamental goal of warping is to create a warp sheet with the desired length and quantity of parallel threads.

Because threads are attached vertically, the longitude set in the finished fabric or dress material is known as the warp. The wrap method is used when threads travel down the fabric’s length.

The warp method of knitting combines and contrasts sequential and interconnected strands to create clothing or fabric. With the aid of the warp method, each loop is made using a distinct set of woollen yarn to produce a cloth.

We all wear clothing composed of the fundamental building block of weaving called the wrap. Hence, it is the fastest way to make fabric from the thread.

Warp is typically applied over the machine to maintain the shape of the fabric or clothing since yarn can migrate ZigZac.

Types of Warp Fabrics

There are many warp fabrics, some of which are as follows:

1. Milanese Knitting

Milanese is sometimes mistaken for tricot, although it is softer and more stable. Because of this, Milanese fabrics are expensive, and undergarments made from this knit are thought to be even better.

2. Tricot

Tricot fabric is used to make lingerie and undergarments. You may have noticed that the underwear’s fabric has longitudinal ribs on one end and transverse lines on the other. It is woven to keep the skin smooth and comfortable.

3. Stitch Bonding

Because the fabric created using this form of weaving has a composite texture, this type of warp knitting stands apart. It is also a key element of the textile industry because of the high productivity rate of the entire process. One of the distinctive textiles made with it is fibre-reinforced plastic.

4. Raschel Knitting

Only thick fabrics that offer additional protection and comfort against the skin should use these knits. Manufacturers use these knits to make unlined clothing like dresses, coats, and jackets because they don’t precisely stretch.

What is Weft Fabric?

The weft threads form the fabric’s body. They could have single or several colours, producing patterns and shapes. Some weavers also enjoy using various materials to create a variety of textures.

The weft threads are frequently strung onto a shuttle, which is moved back and forth through the warp. Setting up the weft on weaving machines can be difficult, particularly when creating patterns.

Weft is a derivative of the old English wefan, meaning “to weave.” This origin makes sense because these threads are the ones that are woven into fabric. The word “warp,” on the other hand, is derived from the Old Norse word warp, which means “the cast of a net.”

In other words, the warp of a fabric functions as a net to catch the weft, retaining these threads securely so that they won’t escape and cause the garment to unravel.

The yarn Weft method is the simplest way to knit, as is readily apparent.

Weft weaving is frequently used to produce fitted clothing and seamless hosiery. The weft thread is used for its look rather than its strength since it causes less strain on the cloth.

Types of Weft Fabrics

Following are some of the kinds of weft fabrics:

1. Interlocking Knit

The combination of two rib-knit patterns is called “interlock knitting.” When the reverse stitches of one rib structure are pushed against the face stitches of another rib structure, an interlock is produced.

2. Purl Knit

Purl knit utilises the opposite weaving technique of regular knit. Instead of plain knitting, which concentrates on a uniform and linear array, purl knitting produces stitches in opposing directions on every adjacent course.

3. Plain Knit

A piece of clothing with back stitches on one side and face stitches on the other is an example of simple knit fabric. Some people call this fabric a single jersey fabric because it is irreversible. A linear array of needles and the standard weaving method used to make everyday clothing generate this fabric.

4. Rib-Knit

Rib knitting is the most challenging weaving type since it uses two different needle systems. Textile experts place one across from the other to create stitches on a nearby course heading the other way. Most people also know this clothing’s use of double-faced materials.

Also Read: What Are Lab Dips in the Garment Manufacturing Industry?

Difference Between Warp and Weft Fabric:

The following are the differences between warp vs weft fabric:

Features

Warp Fabric

Weft fabric

Robust

Warp fabrics are more robust.

Weft fabrics are less robust.

Washability

For a dry wash, the warp-knit fabric is too suitable

Weft-knit material is also ideal for hand washing.

Material

Warps are made of ply yarns.

On the other hand, the weft primarily uses single yarns.

Size

In warp fabrics, the number of inches per yarn is also much larger if the twist is greater.

In the weft, less twist and shorter yarn lengths per inch.

Stretchability

Stretchability is low in warp fabrics.

Stretchability is high in weft fabrics.

Selvedge

Warp fabrics are parallel to the selvedge.

The weft is perpendicular to the selvedge.

Twist

Because they have a higher twist, warp yarns are finer when viewed warp-wise.

On the other hand, weft yarns with a medium twist might be thicker or finer.

Coarse

Warp yarns are not coarse.

Weft yarns are coarser.

Position

The warp yarn is not positioned within the weft threads.

The weft yarn is positioned both above and below the warp threads.

Yarn removal

Warp earns are difficult to be removed from the fabric.

Unlike warp yarn, weft yarn is simpler to remove from fabric.

Strength

Fabric strength and form come from the warp, giving it its framework.

Weft fabric has less strength than warp.

Threads

Warp refers to vertical threads.

Weft refers to the horizontal threads of woven cloth.

Strands

The warp strands provide the fabric structure and stability, which are typically stronger and tauter.

Weft strands are not much stronger.

Weaving process

The warp thread is useful during the weaving process to produce a variety of patterns and textures in the completed fabric.

The weft thread is also useful during the weaving process to produce a variety of patterns and textures in the completed fabric.



Features of a Weft and Warp Fabric

The following are the features of weft and warp fabric:

  • Determination of the Colour of the Cloth: The warp and weft jeans thread colours utilised can determine the colour of the cloth. A two-tone effect results from using a different colour for the weft thread than for the warp thread. The weft direction is typically used to introduce textured yarns or yarns with more twists.
  • Distinctive Characteristics: Fabric’s distinctive characteristics can be significantly influenced by the type of yarn used in the warp and weft. For instance, a possible contraction after weaving occurs when using thin, breakable fibres like rayon.
  • Shrinking: Other fabric characteristics, such as shrinking, are influenced by the yarn tension of the warp or the weft. There is a chance of shrinkage in one direction and puckering when textiles like cotton and linen that shrink are utilised.
  • Yarn Tension: The final fabric you receive while weaving depends on several factors, including yarn tension on the loom. It also depends on the yarn counts of warp, weft, and weave structures. The significance of warp and weft clothes is identified by the fabric’s appearance, texture, strength, and drape.

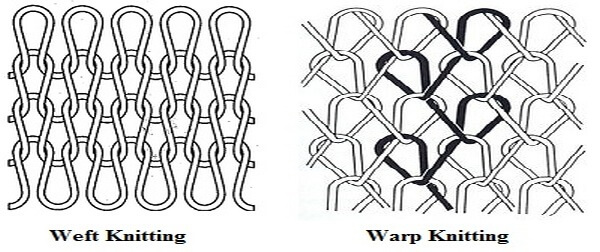

Warp and Weft Fabric in Knitting

Knitting is primarily divided into two types: Weft knitting and Warp knitting.

Weft knitting only needs one yarn. In warp knitting, one yarn is used for each stitch.

Warp knitting is typically done by machine, although weft knitting can be done by hand or machine.

Below given are more details about warp and weft knitting:

  • Courses and Loops: Courses and loops are created with continuous yarn in weft knitting.
  • Stitches (Weft): Three basic stitches are available for weft knitting: plain knit, rib knit, and purl knit.
  • Forms: Fabrics can be produced with warp and weft knitting in both circular and flat forms.
  • Stitches (Warp): Tricot knit, Simplex knit, Raschel knit, Milanese knit, Ketten raschel knit, and crochet knit are the six stitches used in warp knitting.

Also Read: How Is Glue Manufactured – Raw Materials, Production, and Equipments Explained

Which Fabric is Stronger, the Warp or the Weft?

The fabric feels stronger lengthwise than widthwise when held in hand. Similarly, whenever a piece of clothing is cut, the weft threads typically roll and move over the fabric.

The warp is stronger than the weft. The warp thread is drawn firmly on the loom and carries more tension than the weft, which has little weight.

The weft thread is woven in and out of the warp to create a delicate woven fabric. When a piece of clothing is cut, the weft threads run and roll across the fabric.

Conclusion

Customers and those working in the textile industry can use this comprehensive description of the correlations between warp and weft. This will enable them to determine the woven fabric they are handling.

Understanding what warp and weft yarns are in the textile industry can help you correctly use the terms warp and weft. This will enable you to identify the type of woven fabric you are working with.

Understanding what warp yarns and weft yarns are necessary to use warp and weft accurately. Yarn quality requirements determine the features of the fabric. If you work in the textile industry, you should also know warp and weft yarn.
